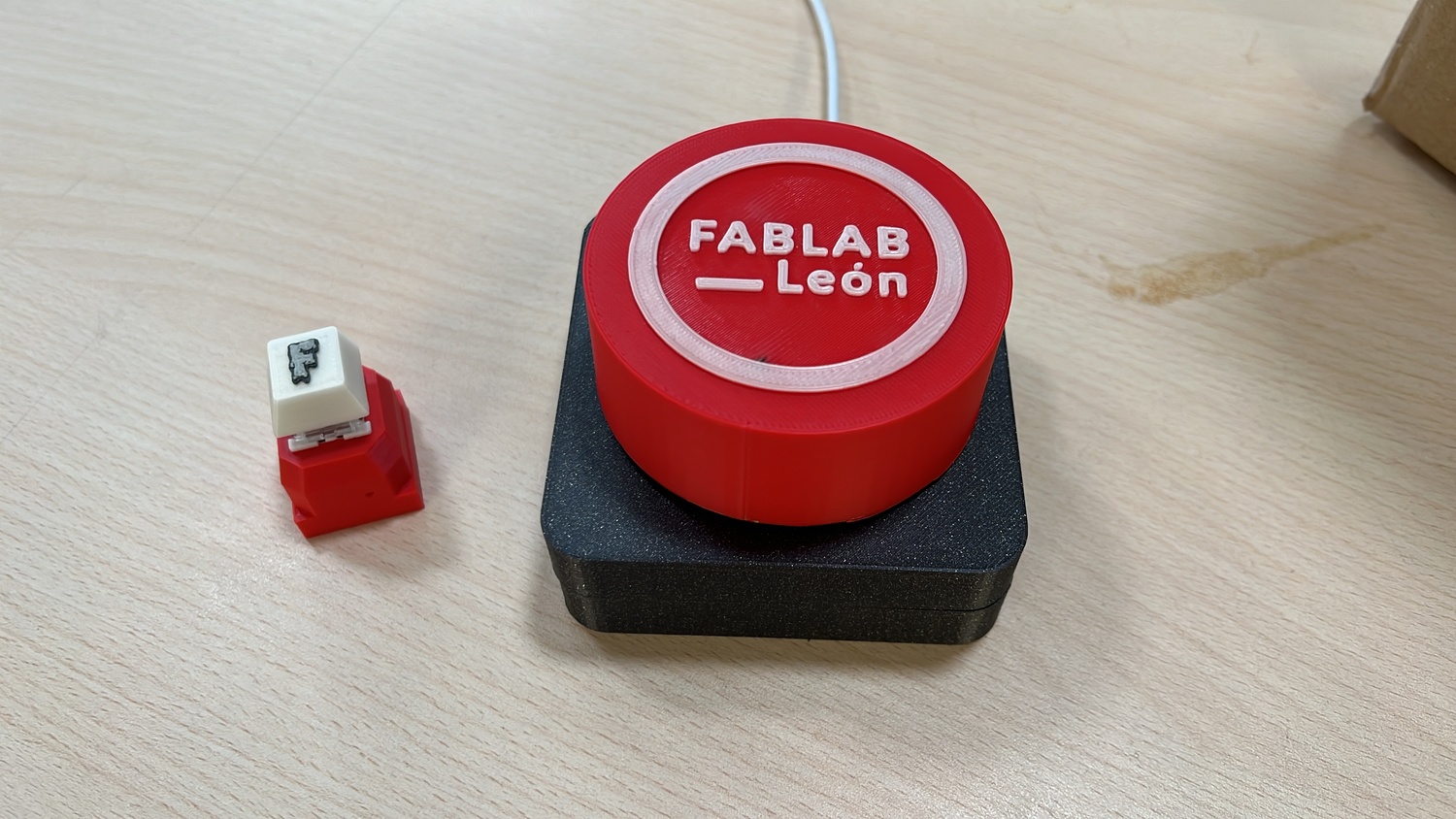

FMCU Keyboard
Designed and created by Adrian Torres at Fab Lab León.

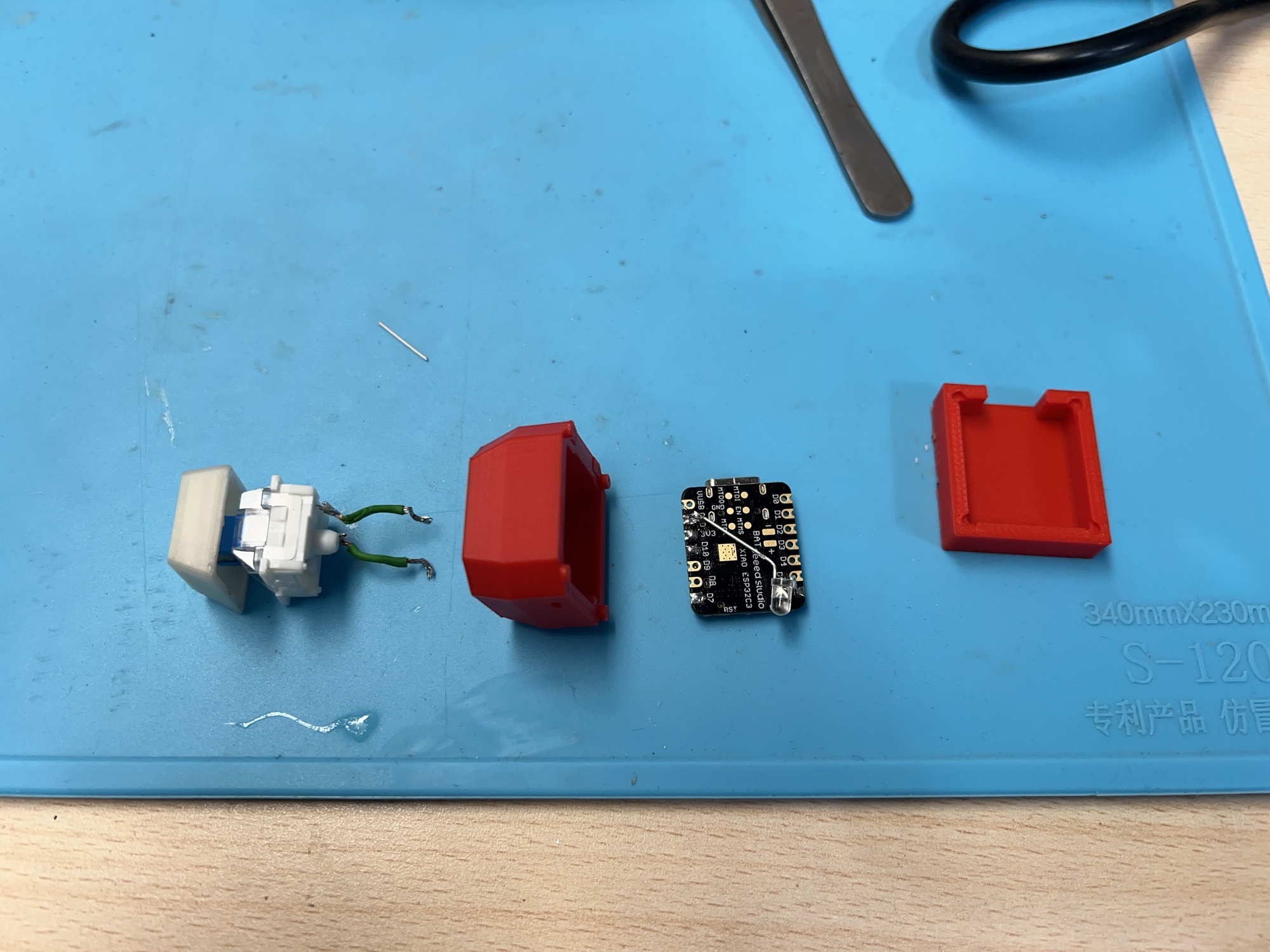

Materials:
- PLA (various colors)
- XIAO ESP32 C3
- 3mm LED
- Keyboard button
Process:
- Print the parts. You can find them here.
- Solder some small wires to the button.

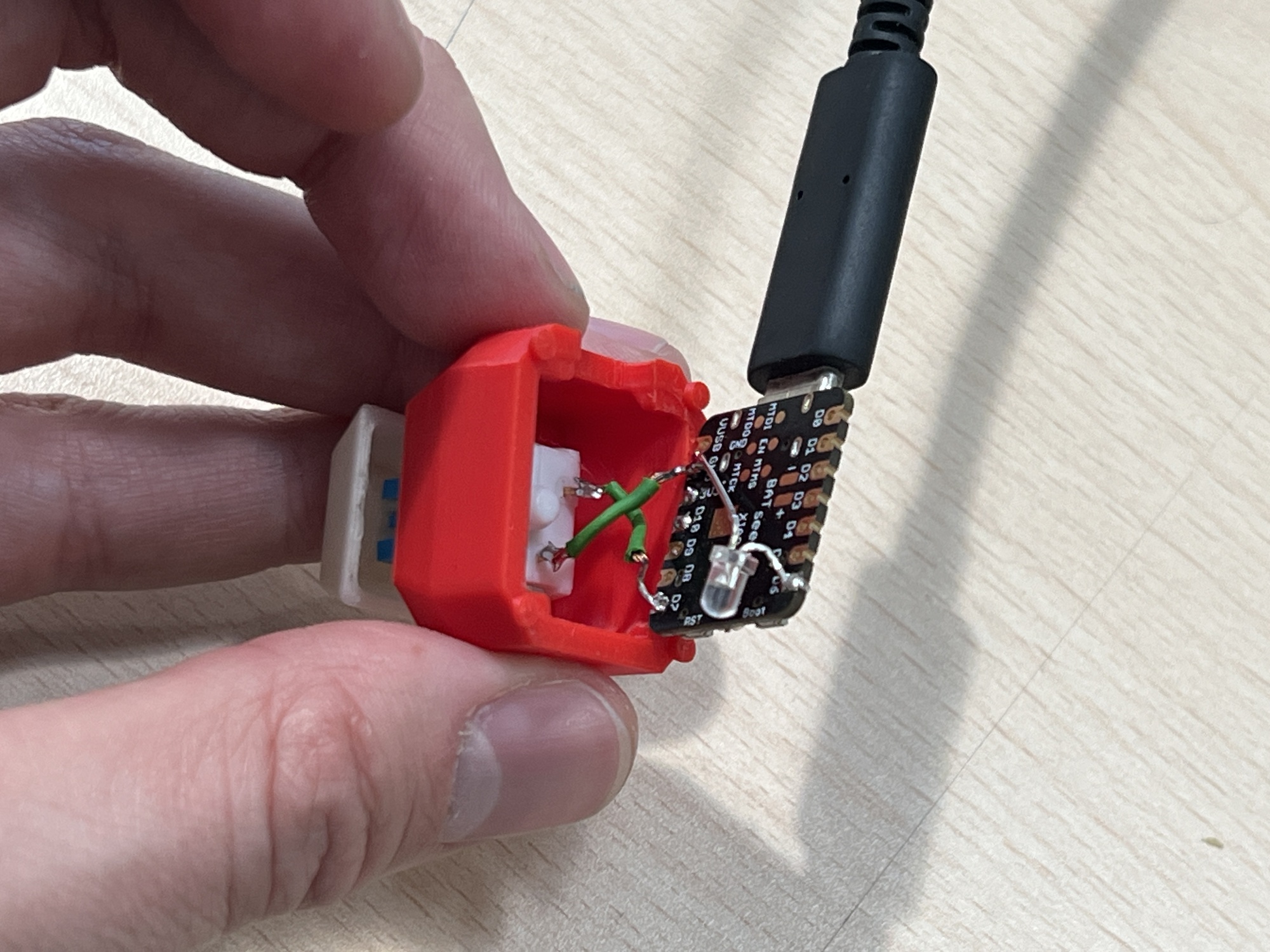

- Solder the LED to pin D6 and to GND. (The LED will light up when you press the button).
- Insert the button and solder the two wires, one to D7 and the other to GND.

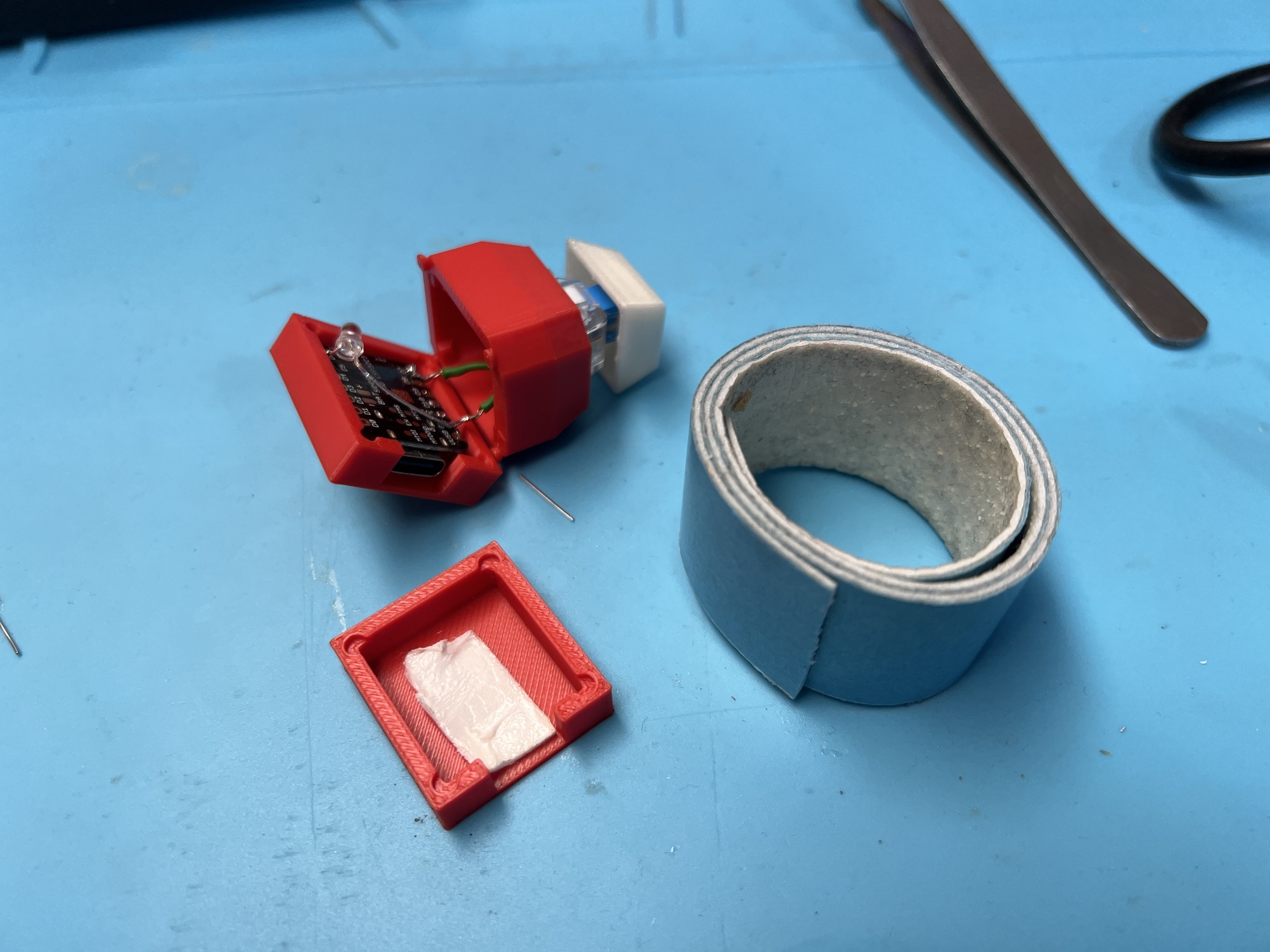

- Apply a small piece of double-sided tape.
- Load the program and connect it. You now have your small button.
