BirdNet AI PCB

by Luc Hanneuse, AgriLab

The updated full documentation is on https://github.com/lhanneus/bird_ai_pcb

I bring components to build the pcb and flash the code.

With Birdweather, that agregate a lot of birdnet systems, you have public access to

Henk birndet system in Amsterdam : https://app.birdweather.com/stations/25552

Luc birdnet system in rural near Beauvais : https://app.birdweather.com/stations/17471

I hope the worshop participants will also share their data publicly.

Fake elecronic microphone component

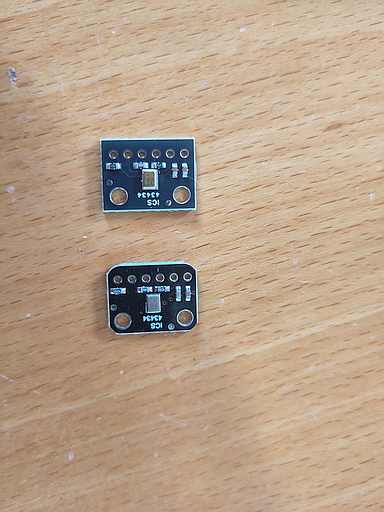

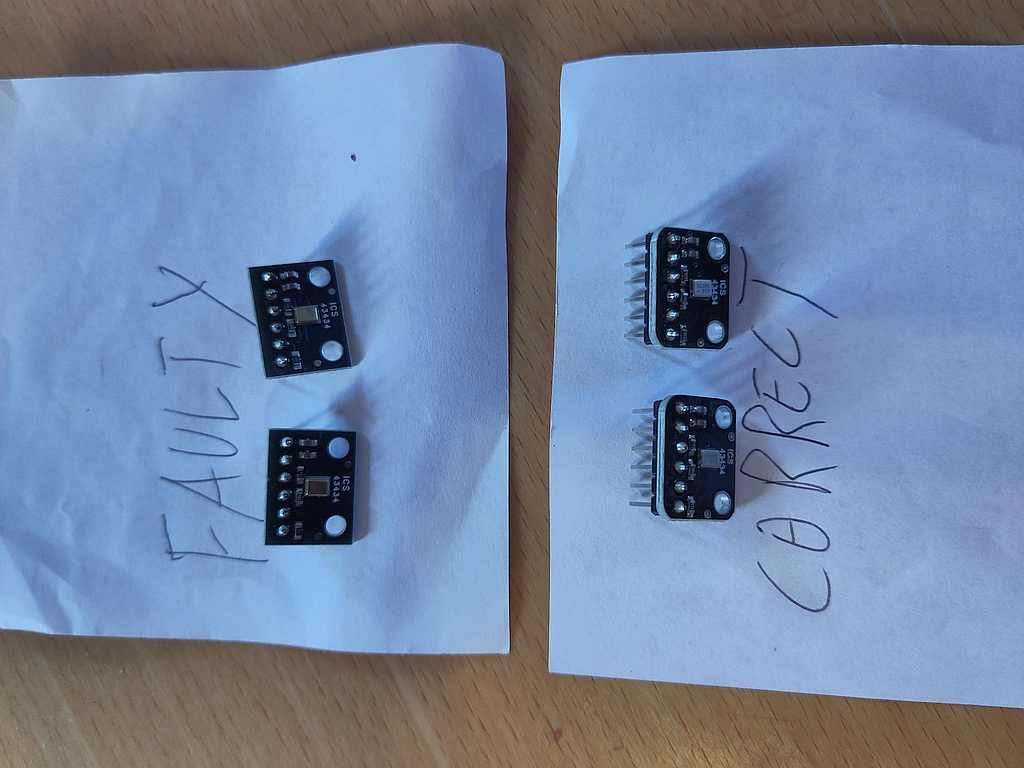

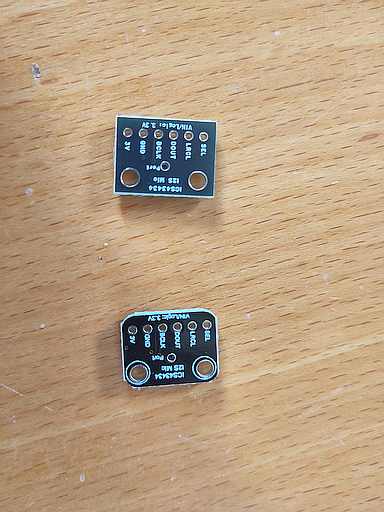

Sadefully, and dispise previous test and a sucessfull previous workshop, one of the electronic component the IC4343 mems microphone received were fake electronic copy. We debugged later on the signal group and participants were enabled to buy a functionning microphone to have the system working. Here are a few photos of the comparison between the fake version and a funcitonnning one.

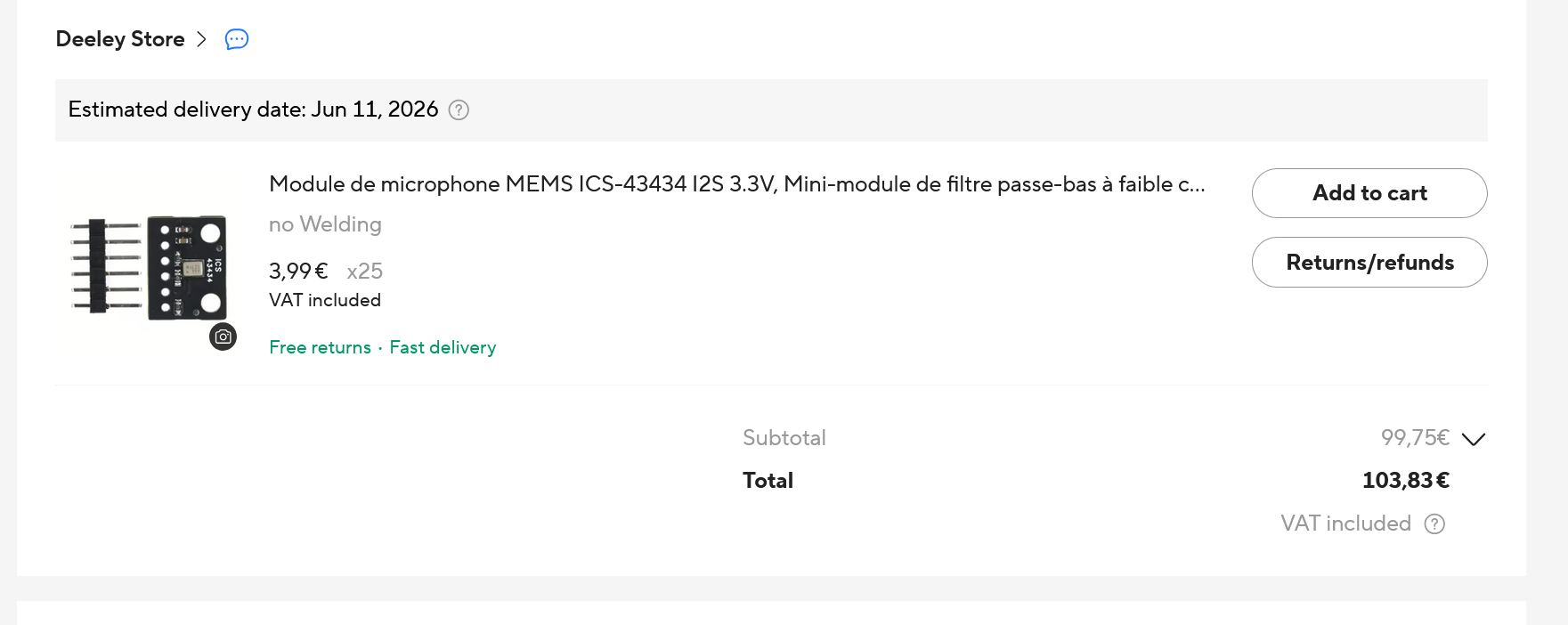

Despite the criticism to aliexpress, with their refund process by sending various videos and photos, I suceed to demonstrate that those were fake component and get reimbursed.

Some photo received after the workshop

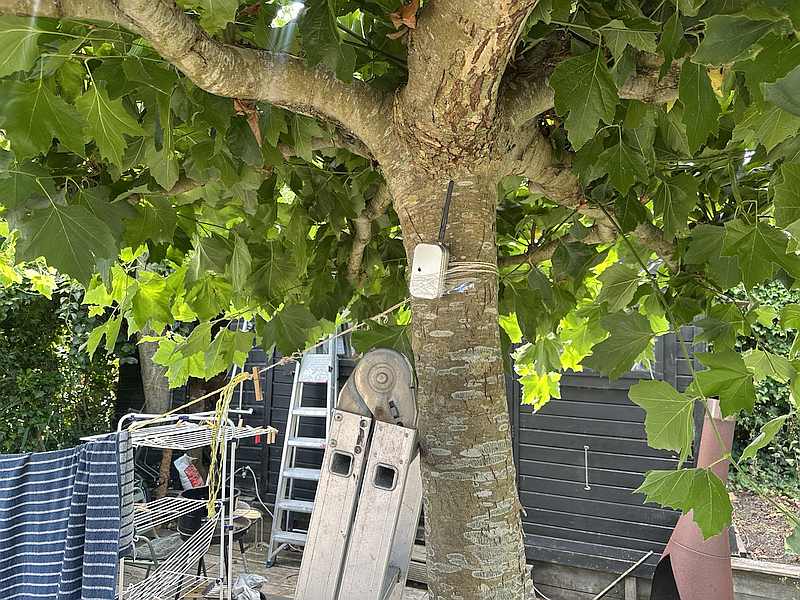

Photo receveid from Christian Nyquist of the system installed on site
